Automotive Cable Management

Auto Cable Ties Series

Disc-mount, adjustable-loop and high-strength types in one series - 11 part numbers from 130 mm to 220 mm, tensile ratings to 240 lbs, hole diameters from 4.05 mm to 13 mm. Available in PA66, PA66H and PA46 depending on the heat zone.

Natural colour as standard, 100 pcs/pack, or packed to your own label. Disc-mount versions locate the harness on a stud or a drilled panel hole; adjustable-loop and high-strength versions handle heavier bundles running along the frame.

View full specifications

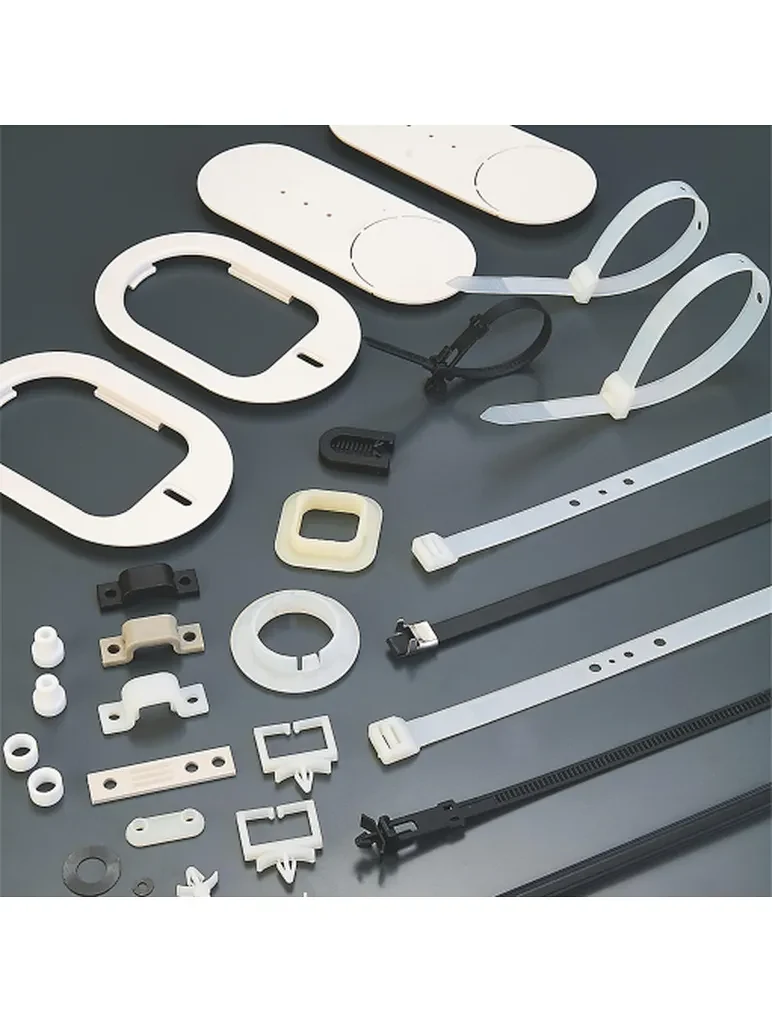

Customized Ties & Clips to Drawing

For OEM and aftermarket programmes where the stud size, panel thickness or bundle diameter does not match a catalogue part. We mould to your drawing - custom length, width, colour and material, with packaging branded to your label.

Send the drawing, the target annual volume and the temperature zone and we will come back with tooling status, unit price and sampling schedule. See the custom OEM / ODM page for how the development process runs.

View full specifications

Under-hood harness routing

Engine-bay temperatures embrittle standard nylon ties within a few seasons. Disc-mount ties in heat-stabilised PA66H hold to +130 °C continuously; where the harness runs close to the turbocharger or exhaust, the PA46 grade covers +150 °C for 5000 h and +195 °C for 500 h. Stud holes from 6.5 to 8.5 mm are covered by the standard range.

Chassis and body-panel fixing

Panel routing fails when a tie slides along the loom. Arrowhead and push-mount fixings lock into a drilled hole so the harness stays exactly where the drawing puts it, and R-type clamps take the load on larger bundles running along the frame. Retention depends on hole diameter and panel thickness - we match the fixing to your sheet-metal spec rather than the other way round.

Cabin, trim and low-profile routing

In the cabin the constraint is space and serviceability, not heat. Low-profile heads keep the bundle tight to the surface, releasable ties allow a harness to be opened for repair without cutting, and marker ties carry the circuit identification that makes later diagnostics faster.

EV and charging harnesses

High-voltage and charging runs need UV-stable black material, wider straps and a fixing that will not creep under constant vibration. We select the grade and the mount against the ambient profile you give us, and produce to the harness drawing - including the batch traceability your quality system will ask for later.
